SECTION, MM |

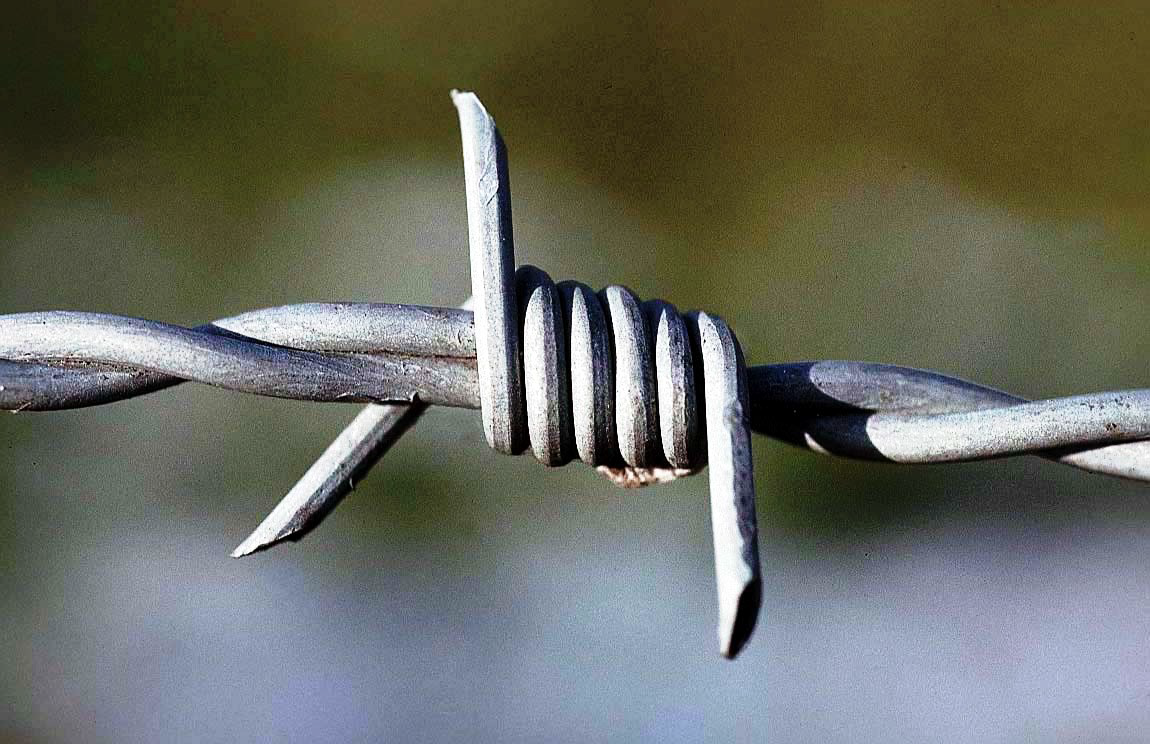

- wire Ø 2.00; 2.25; 2.25; 2.50 mm; - barb wire Ø 2.00; 2.25; 2.25; 2.50 mm; - Rm max 550 N/mm2; two central wires; 4 barbs; - barbs spacing 80-110; barb length 20+/-5; |
||
EXECUTION | SF 78 - 2001, ed 2/2002 | ||
STEEL GRADE | low carbon steel | ||
STEEL SPECIFICATION | ASTM A510M-93 | ||
APPLICATION | for general purposes | ||
DELIVERY ![]() |

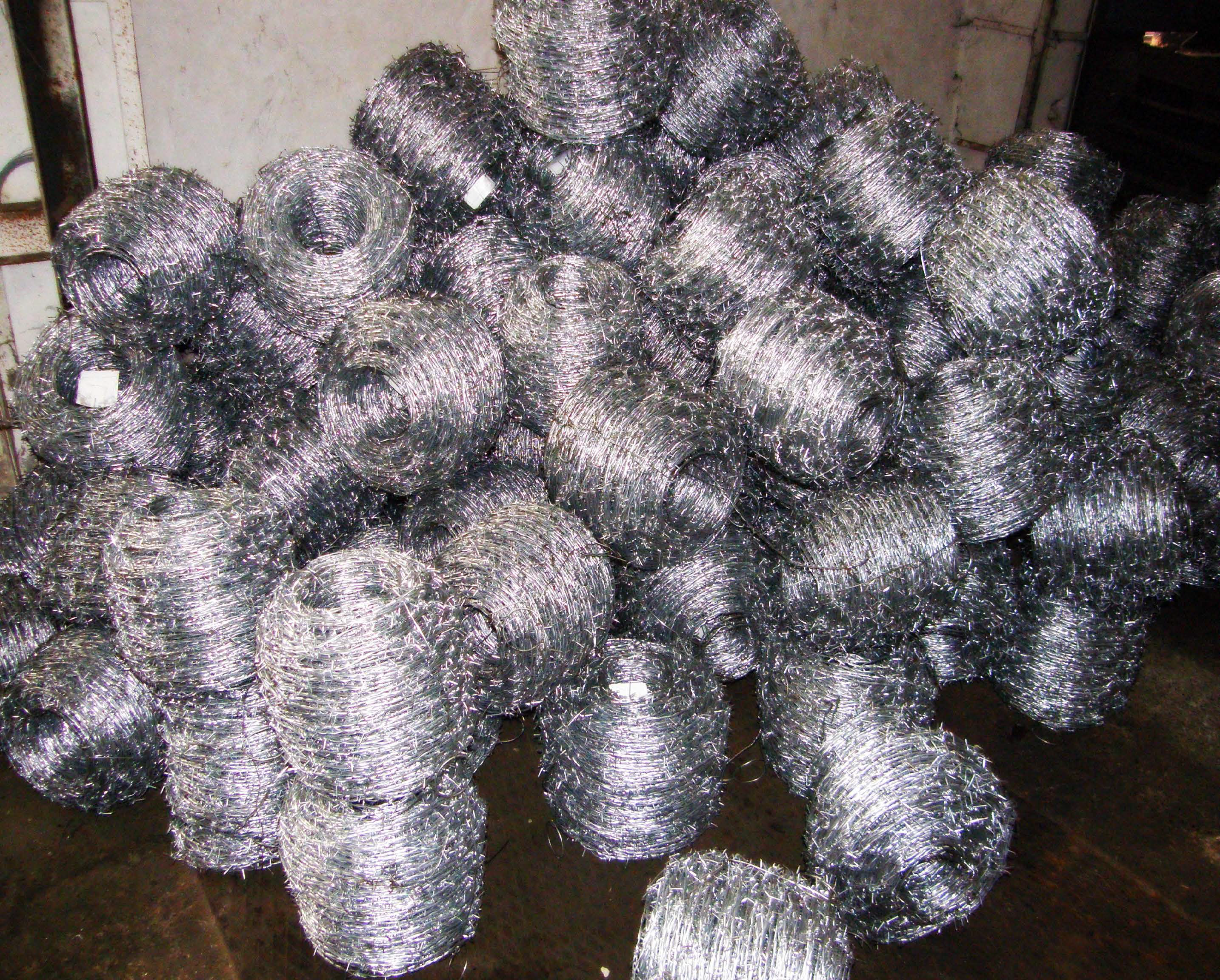

- coils of 22 kg +/-4 or according to customer requirement but not less than 14 kg; - other coil weight upon special request but no more than 30 kg in one coil; ![]() ![]() |
Products manufactured are complying to: |
|||||
Quality Management System EN ISO 9001:2008-certified for Lloyd's Register | |||||
Environmental Management System EN ISO 14001:2004-certified by National Quality Assurance |
